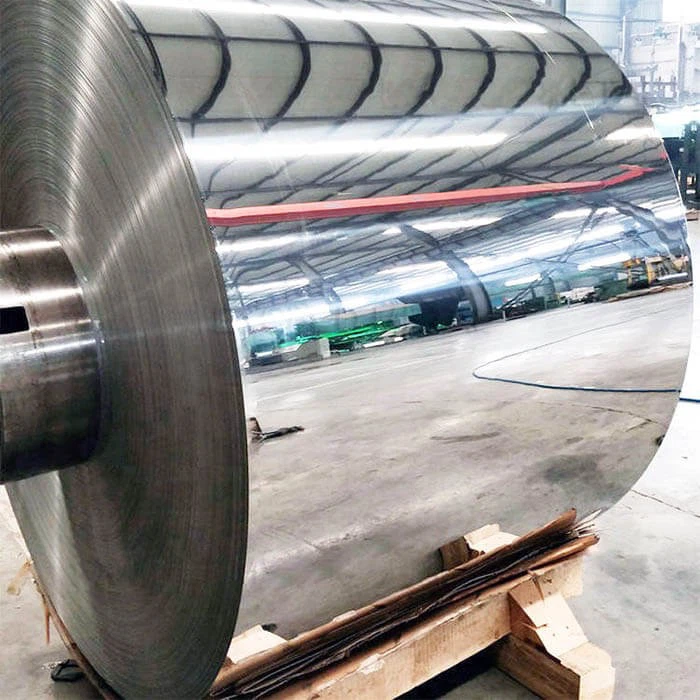

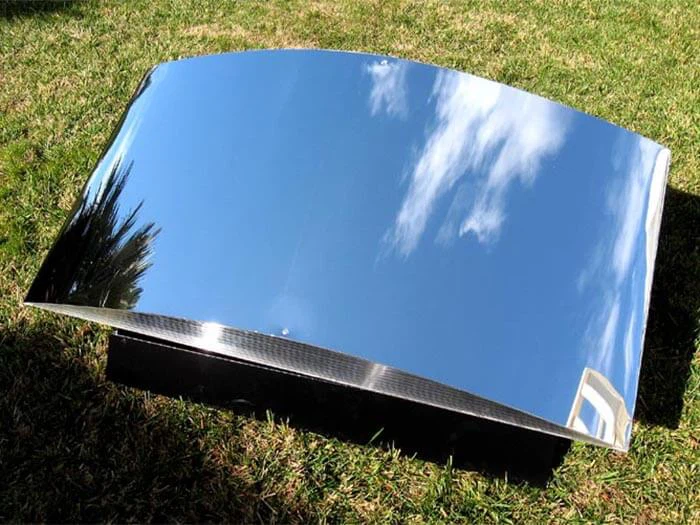

Aluminum Mirror Sheet
Temper:O,H12,etc.

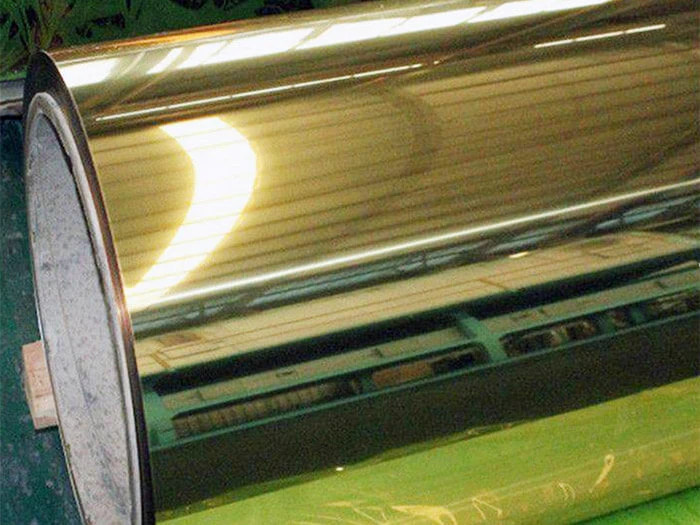

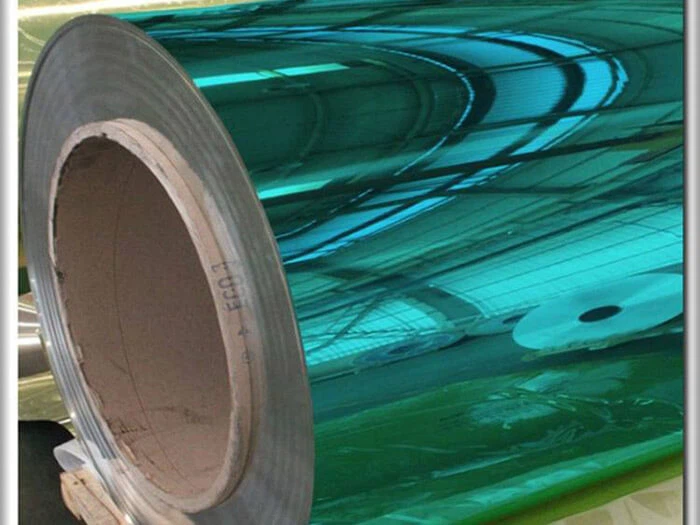

Color: bare color, gold, cyan, bronze, black, etc.
Width (mm): 200-2650
Length (mm): Costomized
Send Inquiry
Product Details ofAluminum Mirror Sheet
An aluminum mirror sheet is a highly reflective aluminum sheet that offers exceptional brightness, durability, and versatility. This polished or anodized aluminum sheet features a mirror-like finish, making it a popular choice across industries, from architectural design to consumer electronics.
The key specifications of the aluminum mirror sheets
| Product Type | Alloy/Composition | Thickness (mm) | Width (mm) | Length/Dimensions (mm) | Reflectivity (%) | Temper | Key Applications |
|---|---|---|---|---|---|---|---|
| 1000 Series – 1050/1060/1070 | 1000 series (≥99.00% Al) | 0.1 – 3.5 | 10 – 1700 | 500 – 16,000 | 80, 86, 95 | O, H12, H14, H16, H18, H24 | Building decoration, lighting, solar reflective equipment, electronic shells |
| 1000 Series – 1080/1085/1090 | 1000 series (≥99.00% Al) | 0.1 – 1.0 | 10 – 1700 | 500 – 16,000 | 80, 86, 95 | O | Lighting fixtures, solar reflective equipment, special purposes |
| 3000 Series – 3003 | Aluminum manganese alloy | 0.15 – 10 | 10 – 1700 | 500 – 16,000 | 80, 86, 95 | O, H12, H14, H18, H19 | Decorative panels, interior/exterior applications, corrosion resistance |
| 3000 Series – 3105 | High-purity aluminum (≥99.8% Al) | 0.15 – 10 | 10 – 1700 | 500 – 16,000 | 80, 86, 95 (≥85% mirror) | O, H12, H14, H18, H19 | High-transparency mirrors for lighting and reflective purposes |
| 5000 Series – 5454, 5182, 5183, 5754 | Magnesium alloy additions | 2 – 8 | 1200 – 2600 | 2000 – 16,000 | 80, 86, 95 | O, H22, H32, H111, H112 | High strength applications such as marine, pipelines, automotive parts |
| Embossed Aluminum Mirror Sheet | Various alloys (e.g., 1050, 1060, 3003, 3105) | 0.01 – 8.0* | 800 – 1220* | Customized sizes | ≥86 (stable mirror effect) | - | Lamp lighting, reflector shades, increased surface area for heat dissipation |
| Anodized Aluminum Mirror Sheet | Typically high-purity aluminum | 0.2 – 0.8 | Standard coil sizes | - | >86 (with low diffuse reflectance ≤12%) | - | Lighting, solar collection, decorative panels, appliance shells |
| Color-Coated Aluminum Mirror Sheet | Same as mirror base alloys with coating | 0.2 – 0.5 | 1000 – 1500 | - | 85 – 87 | - | Indoor/outdoor decorative panels, jewelry packaging, ACP applications |
| High Reflective Mirror Aluminum | Base aluminum with multilayer (TiO₂, SiO₂) coatings | 0.3 – 1.0 | ≤1250 | - | 95 ± 1 | - | Ultra-high reflectivity in lighting and specialized optical applications |
| Mirror Aluminum Circle | Typically 1100/1060 alloys | 0.3 – 1.0 | Maximum diameter: 1000 | - | ~86 | H0, H18, H24 | Kitchenware covers, household appliance panels, decorative components |
Types of Aluminum Mirror Sheets from huawei aluminum
Aluminum mirror sheets come in various finishes, coatings, and grades, allowing for customized options based on specific requirements. The most common types include:
Type
| Description | |
Rolled mirror Aluminum Sheet | 80-85% reflectivity. ordinary physical rolling process, 7 rolling passes, production range: 0.1-1.0mm, MAX width: 1250mm. |
Polished Aluminum Sheet | reflectivity above 75%. Usually thick plate, The thickness is between 5mm and 20mm, and the mirror aluminum plate of 5-6 is very suitable for manufacturing fuel tanks. |
Anodized Aluminum Sheet | 85% to 90% reflectivity. A dense and insulating oxide film is generated on the aluminum surface by electrochemical methods, giving it higher surface protection properties, further protecting the aluminum surface from physical damage and chemical corrosion, and making it more suitable for outdoor applications. |
Laminated Aluminum Sheet(Physical Vapour Deposition) | Can guarantee 95% reflectivity, up to 98%.We use the latest metal surface vacuum coating technology. The material consists of an aluminum base layer, an affinity layer, a 99.99% ultra-pure aluminum layer, and a protective and enhanced reflection layer (TiO2+MgF2*). |

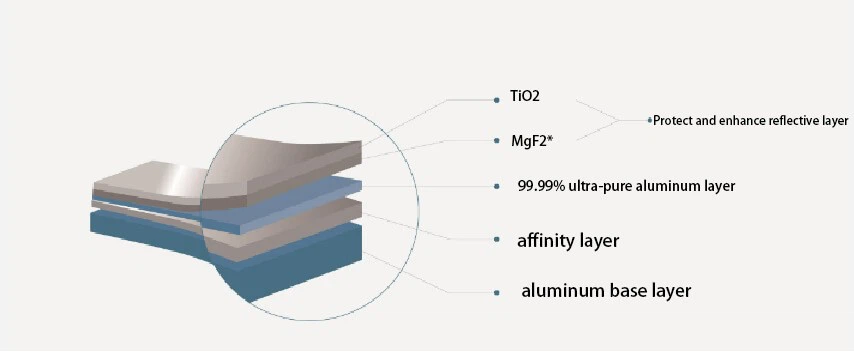

We need to introduce Laminated Aluminum Sheet (Physical Vapour Deposition): Huawei aluminum can provide PVD (Physical Vapour Deposition) physical vacuum plated mirror aluminum sheet. We use the latest metal surface vacuum coating technology. The material consists of an aluminum base layer, an affinity layer, a 99.99% ultra-pure aluminum layer, and a protective and enhanced reflection layer (TiO2+MgF2*).
Different from the common SiO2 combination protection and enhanced reflection layer, we use a TiO2+MgF2 combination. This new combination has been tested and the results show that the total reflectivity is 1.5% higher than that of the SiO2+TiO2 combination material, and the highest reflectivity can even reach 98% which can only be achieved by plating 99.99% ultra-pure silver. This product will greatly improve the reflective performance while reducing the material cost of customers.
Application of mirror aluminum sheet
Conventional industries: billboards, lampshade materials, reflectors, solar power generation, building exterior wall decoration, tubular lighting devices, etc.
