Introduction

PTP (Push Through Pack) aluminum foil is a key material in the pharmaceutical and food packaging industries. Known for its excellent barrier properties, durability, and safety, PTP aluminum foil is a crucial component in preserving the integrity, efficacy, and shelf life of products. This product page provides a comprehensive overview of PTP aluminum foil, highlighting its features, benefits, applications, and specifications to help you make an informed decision for your packaging needs.

Common alloy types of PTP Aluminum Foil are alloy 8011, 8079, 8021.

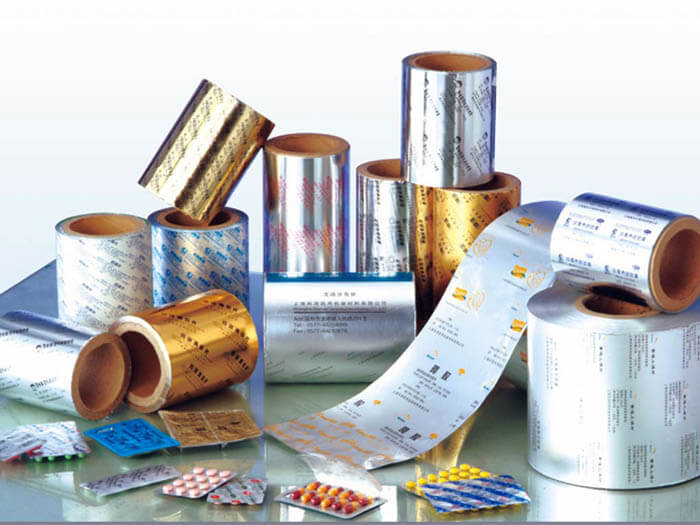

PTP Blister Foil

Features and Benefits

Features

High Barrier Protection: PTP aluminum foil offers exceptional barrier protection against moisture, oxygen, and light, ensuring product integrity and longevity.
Durability: It is highly resistant to tearing, puncturing, and other physical damages, maintaining its integrity during handling and transportation.
Safety: Made from non-toxic and FDA-approved materials, PTP aluminum foil is safe for direct contact with pharmaceuticals and food products.
Customization: Available in various thicknesses, widths, and designs to meet specific packaging requirements.
Ease of Use: Its push-through feature allows easy access to the product while maintaining packaging integrity.

Benefits

Extended Shelf Life: The superior barrier properties of PTP aluminum foil help in extending the shelf life of products by protecting them from environmental factors.
Product Safety: Ensures that the product remains uncontaminated and safe for consumption.
Cost-Effective: Reduces waste and spoilage, leading to cost savings for manufacturers and consumers.
Versatility: Suitable for a wide range of products including pharmaceuticals, food, and cosmetics.
Sustainability: Recyclable and eco-friendly, contributing to environmental conservation efforts.

Applications

Pharmaceutical Industry

PTP aluminum foil is predominantly used in the pharmaceutical industry for packaging tablets, capsules, and other dosage forms. Its high barrier properties protect the drugs from moisture, oxygen, and light, preserving their potency and efficacy. The push-through feature allows for easy and hygienic dispensing of individual doses.

Food Industry

In the food industry, PTP aluminum foil is used for packaging snacks, confectionery, and other perishable items. It helps in maintaining the freshness and flavor of the products while preventing contamination.

Cosmetics Industry

For the cosmetics industry, PTP aluminum foil is used to package creams, lotions, and other beauty products. It ensures that the products remain fresh and uncontaminated, providing a premium experience to the end-users.

Specifications

To cater to various needs, PTP aluminum foil comes in a range of specifications. Here is a detailed table summarizing the key specifications:

Specification	Details
Material	Aluminum
Thickness	20-30 microns
Width	50-600 mm
Color	Silver, customizable with printed designs
Coating	Heat-sealable lacquer, customizable as per requirements
Core Diameter	76 mm or 152 mm
Roll Length	Customizable
Tensile Strength	≥ 60 N/mm²
Elongation	≥ 1%
Moisture Barrier	≤ 0.01 g/m²/24h (at 38°C, 90% RH)
Oxygen Barrier	≤ 0.01 cm³/m²/24h (at 23°C, 0% RH)
Light Transmission	0% (opaque)
Compliance	FDA, EU regulations, and other international standards
Shelf Life	Typically 3-5 years under recommended storage conditions

Pharmaceutical PTP aluminum Foil

Technical Advantages

Barrier Properties

PTP aluminum foil's excellent barrier properties are crucial for sensitive products. The table below highlights the barrier performance metrics:

Property	Performance	Benefit
Moisture Barrier	≤ 0.01 g/m²/24h	Prevents moisture ingress, protecting moisture-sensitive products
Oxygen Barrier	≤ 0.01 cm³/m²/24h	Prevents oxidation, preserving product efficacy and shelf life
Light Barrier	0% Light Transmission	Protects light-sensitive products from degradation
Chemical Resistance	Resistant to acids, alkalis, and solvents	Ensures product safety from chemical interactions

Physical Properties

Durability and ease of handling are paramount for packaging materials. Below are the key physical properties of PTP aluminum foil:

Property	Performance	Benefit
Tensile Strength	≥ 60 N/mm²	High resistance to tearing and puncturing
Elongation	≥ 1%	Flexibility and resilience during packaging processes
Heat Seal Strength	≥ 10 N/15 mm	Reliable sealing performance for secure packaging
Peel Strength	Customizable	Allows easy opening for consumer convenience

Customization Options

PTP aluminum foil can be tailored to meet specific packaging requirements. Customization options include:

Option	Details
Printing	Custom logos, text, and designs in various colors
Coating	Different heat-sealable lacquers and primers
Embossing	Custom patterns for branding and anti-counterfeiting
Perforation	Custom perforation patterns for easy product access
Roll Dimensions	Customizable width, length, and core diameter

ptp aluminum foil

Quality Assurance

Ensuring the highest quality standards is critical for PTP aluminum foil. The following table outlines the quality assurance measures:

Quality Parameter	Testing Method	Frequency
Material Purity	Spectroscopy Analysis	Each Batch
Thickness Uniformity	Micrometer Measurement	Random Sampling per Roll
Barrier Properties	Moisture and Oxygen Transmission Tests	Batch Testing
Tensile Strength	Tensile Testing Machine	Batch Testing
Heat Seal Strength	Heat Seal Tester	Batch Testing
Visual Inspection	Manual and Automated Systems	Continuous

Packaging and Storage

Proper packaging and storage are essential to maintain the quality of PTP aluminum foil. Here are the recommended practices:

Packaging

Inner Packaging: Rolls are wrapped in polyethylene film to prevent moisture ingress and contamination.
Outer Packaging: Rolls are placed in strong corrugated boxes or crates for additional protection.
Labeling: Each package is labeled with relevant information such as material grade, thickness, width, roll length, batch number, and manufacturing date.

Storage

Temperature: Store in a cool, dry place with a temperature range of 15-25°C.
Humidity: Maintain a relative humidity of 40-60% to prevent condensation and corrosion.
Handling: Use appropriate equipment for handling rolls to avoid physical damage.
