Aluminum Jacket
Huawei Aluminum Jacketing, is the ultimate solution for safeguarding mechanical insulation systems. With a focus on durability, weather resistance, and functionality, Huawei Aluminum Jacketing sets a new standard in the industry.
| Specifications of aluminium coil with moisture barrier | |
| Alloy | A1050 ,A1060, A1100 ,A3003 ,A3105,5052,5083,6061 etc |
| Temper | O,H12,H14 ,H16 ,H24 ,H26 |
| Aluminium thickness | 0.4-1.5mm ,popular thickness 0.4,0.5,0.6,0.7,0.8,0.9mm |
| Polycraft paper thickness | 0.14mm-0.16mm/0.1mm/0.2mm |
| Polycraft paper weight | about 80~100g/sqm |
| Polycraft paper colour | yellow |
| Polysurlyn thickness | around 0.076mm ,0.078mm |
| Polysurlyn color | Blue/pink |
| Popular aluminium coil width | 914mm, 1000mm, 1200mm, 1220mm or as per customer required |
| Coil weight/length | 2-3ton big coils, or cut to small rolls according to customer's requirement.（比如30m） |
| Aluminium surface treatment | smooth,embossed, orange peel |
| Packages | In export sea-worthy wooden pallets for big coils 2-3ton each. |
| The small rolls usually packed in carton box/wooden pallet individually. | |
| Standard | GBT, ASTM, EN |
| MOQ | 5ton per size |
| Delivery time | within 35days after get the advance payment |
Unparalleled Protection
Huawei Aluminum Jacketing offers unrivaled protection for pipes, vessels, and equipment in mechanical insulation systems. Designed to shield against physical damage, UV exposure, corrosive atmospheres, and water, our jacketing ensures the longevity and optimal performance of your insulation infrastructure. Say goodbye to concerns about weathering or deterioration as Huawei Aluminum Jacketing takes insulation protection to the next level.
Premium Material and Finishes
We pride ourselves on using high-quality materials and providing a range of finishes to meet your specific needs. Huawei Aluminum Jacketing is manufactured using alloys 1100, 3003, 3105, or 5005, complying with ASTM B209 standards for aluminum alloy. Our jacketing is available in three surface finishes: smooth (plain mill), stucco embossed, and corrugated, allowing you to choose the ideal option for your application.
Smooth (Plain Mill) Finish
The smooth finish is a popular choice for those seeking a clean and professional look. With excellent reflectivity, this finish efficiently sheds rainwater, providing added protection. It is the go-to option for a wide range of applications, including pipelines, vessels, tanks, and equipment in need of a sleek appearance that is easily cleaned.

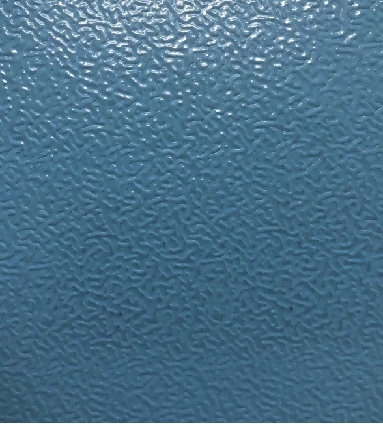

Stucco Embossed Finish
For those looking to minimize the appearance of scratches or imperfections, the stucco embossed finish is the perfect choice. The textured surface adds durability, hiding small damages caused during or after installation. This finish reduces reflectivity while maintaining an elegant and professional look, making it an ideal solution for a variety of insulation projects.
Corrugated Finish
Our corrugated aluminum jacketing is designed for applications that require superior strength and rigidity. With options like Type V4.8 (3/16"), Type V32 (1-1/4"), Type V65 (2-1/2"), and Type 820, the corrugated finish provides exceptional protection for larger equipment, tanks, and ductwork. Its unique design ensures resilience against physical damage, UV exposure, corrosive atmospheres, and water.
Polykraft/Polysurlyn Moisture Barrier
Huawei Aluminum Jacketing comes standard with a high-performance moisture barrier to prevent galvanic corrosion and protect against corrosive elements. Our Polykraft moisture barrier consists of a layer of one mil polyethylene film with a protective layer of 40# virgin kraft paper. Alternatively, the Polysurlyn moisture barrier offers a three-layer coextruded film of polyethylene and Surlyn polymers. The heat-laminated barrier prevents moisture contact with the metal jacketing, ensuring the integrity of your insulation system.

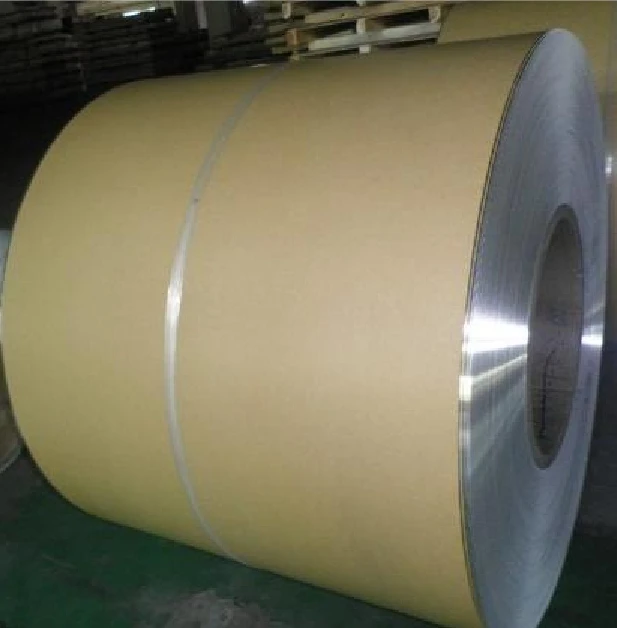

Polykraft type moisture barrier
Polysurlyn type moisture barrier
Wide Range of Options
We understand that every project is unique, and that's why Huawei Aluminum Jacketing is available in various widths and thicknesses. Choose from widths of 36" and 48", and thicknesses ranging from 0.016" to 0.040". Whether you require standard industrial use, extra strength, or heavy-duty protection, we have the perfect solution to meet your specific requirements.
In conclusion, Huawei Aluminum Jacketing is the ultimate protective outer surface for mechanical insulation systems.
