Hydrophilic Aluminum Foil
Uages of Hydrophilic aluminium foil
Hydrophilic aluminum foils are the main raw material for household air-conditioning heat exchangers. It has a great influence on the efficiency of the air conditioner. If the raw material of the heat exchanger is hydrophilic aluminum foil, the cooling efficiency can be improved by 5%, and it also has the functions of anti-corrosion, anti-mildew, and odorless, and will not cause the accumulation of water droplets to affect heat transfer.
Because there are no water droplets, the noise caused by vibration is correspondingly reduced; the air-conditioning powder is prevented from being blown into the room, causing adverse effects on the human body, and meeting environmental protection requirements. Hydrophilic aluminum paper for air-conditioning should comply with YS/T95.2-2001.
Mechanical Property of hydrophilic aluminium foil
Alloy | Temper | Indoor Mechanical Property | ||
Tensile Strength | Elongation | Cupping Test Value | ||
1100 | O | 80～100 | ≥20 | ≥6.0 |
H22 | 100～135 | ≥16 | ≥5.5 | |
H24 | 115～145 | ≥12 | ≥5.0 | |
H26 | 125～160 | ≥8 | ≥4.0 | |
H18 | ≥160 | ≥1 | --- | |
Hydrophilic foil coating performance
No | Project Indicator | Technology Indicator | |
1 | Coating thickness | 1.0~3.0UM(The Average Thickness of Single Side) | |
2 | Hydrophilia | The Initial Hydrophilic Angle | The Initial Hydrophilic Angle ≤5 |
3 | Continuous Hydrophilic Angle | Continuous Hydrophilic Angle≤25 | |
4 | Adhesive Force | Cupping Test(pressure deep 5mm):No Flaking: | |
5 | Corrosion Resistance | Salt fog test(72 Hours)R.N≥9.5 | |
6 | Alkali Resistance | With 20 degree centigrade ,soak in the 20%NaOH with 3 Minutes,the sample coating layer totally no frothing | |
7 | Solvent Resistance | Weight loss of Sample≤1% | |
8 | Heat Resistance | Under 200 degrees Celsius,Keep for 5 minutes,Properties and the color remains the same;Under 300 degrees Celsius,Keep for 5 minutes,Coating layer just become light yellow. | |
9 | Oil Resistivity | In the volatile oil soaked for 24 hours,Coating layer has no frothing | |
10 | Coating Smell | No off-smell | |
11 | To the mold wear | Same as the ordinary aluminium foil | |

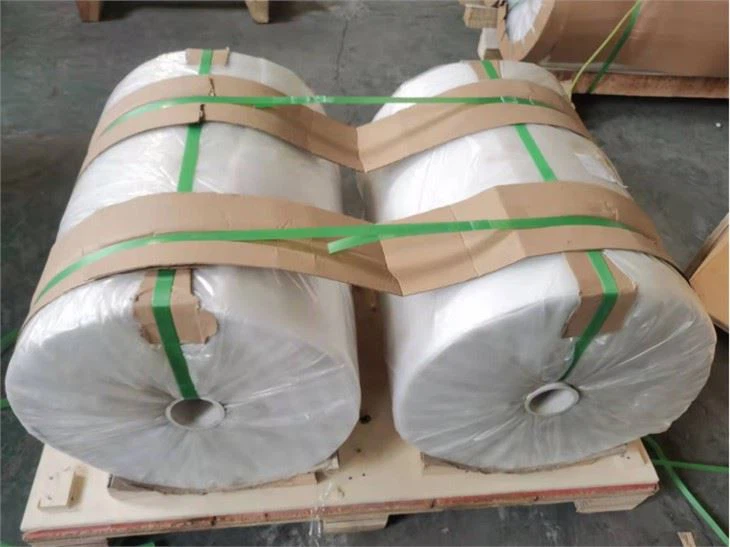

Packing:
Export Standard,Wooden Pallet or Wooden Case
